xTool UV Laser Engraver Lineup: Reliability and Hardware Analysis

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

When marking brittle substrates such as crystal glassware, perfume bottles, and delicate plastics, standard thermal lasers often cause micro-fracturing, rough edges, and thermal blowout. Choosing the right xtool uv laser configuration solves this dilemma by using a 355nm ultraviolet cold light source. Instead of burning or melting substrate fibers, an ultraviolet beam initiates a photochemical reaction that breaks molecular bonds with negligible heat transfer. This specialized process yields sub-10-micron beam accuracy without burning, yellowing, or edge shattering, making it an essential tool for high-precision personalization studios that struggle with standard thermal engravers.

Navigating the current catalog requires understanding how different wavelengths and form factors fulfill specific manufacturing roles. This hardware analysis evaluates six distinct xTool setups: three configurations of the flagship 5W ultraviolet galvanometer platform, two modular upgrade heads designed for existing frames, and a dual-source high-speed fiber system. By contrasting the cold beam mechanics of an xtool uv laser engraver with high-output diode cutting and infrared metal marking, this guide details optical reliability, mechanical chassis integrity, and post-purchase support limits so your workshop invests in the proper hardware.

Which xTool Laser Engravers Should You Buy

• Turnkey crystal and glass personalization: Choose the base xTool F2 Ultra UV Laser Engraver for high-speed sub-10-micron surface etching and 3D subsurface interior marking.
• Commercial drinkware and automated batch runs: Choose the xTool F2 Ultra UV Laser Engraver Deluxe Bundle to obtain the conveyor system, rotary attachment, and dedicated multi-stage smoke purifier.
• Direct-to-tabletop fragile substrate engraving: Choose the xTool F2 Ultra UV Laser Engraver packaged with safety glasses for baseline optical eye protection out of the box.
• Heavy timber cutting and architectural fabrication: Choose the xTool S1 40W Laser Module to maximize single-pass cutting throughput on an existing S1 gantry.
• Custom gold, silver, and jewelry marking: Choose the xTool 1064nm Infrared Laser Module to upgrade a D1 Pro setup with 15KW peak pulse power.
• High-output mixed-material industrial production: Choose the xTool F1 Ultra 20W Fiber & dual diode platform for high-speed deep metal embossing and rapid organic material cutting.

xTool F2 Ultra UV Laser Engraver

Best for: Operators prioritizing immediate optical safety compliance

Pros

• Includes dedicated laser safety glasses
• Internal 3D glass subsurface engraving
• Dual 48MP camera alignment
• Fast 15000 mm/s galvo scanning

Cons

• Lacks production conveyor hardware
• Requires separate smoke extraction system

Best for: Turnkey production workshops processing cylindrical glass

Pros

• Includes Auto Conveyor and RA3 rotary
• Dedicated SafetyPro AP2 smoke purifier included
• Automated batch processing workflow
• Cold light prevents glass micro-fractures

Cons

• Substantial workspace footprint requirement
• Multiple accessories require dedicated maintenance

Best for: Fine crystal and glass engraving specialists

Pros

• Sub-10 micron spot size
• Cold UV prevents material charring
• High 15000 mm/s galvanometer speed
• Dual 48MP auto-focus cameras

Cons

• Heavy 49.6-pound enclosed aluminum chassis
• 5W power limits cutting throughput

The xTool F2 Ultra UV Laser Engraver serves as the core standalone configuration of Makeblock’s specialized ultraviolet platform, carrying manufacturer model number MXF-K007-002. At its heart lies a 5W (5000mW) cold UV laser source capable of focusing down to a spot size smaller than 10μm. This microscopic beam profile enables clean surface engraving, relief embossing, and complex 3D inner engraving within transparent glass and crystal without micro-cracking the surrounding material. In production environments where optical alignment must mirror the spatial accuracy of a dewalt lazer level, the machine relies on dual 48MP cameras to automate surface focus, alignment, and coordinate tracking without manual measurement errors.

Constructed around a solid aluminum alloy frame with a total weight of 49.6 pounds, this machine delivers mechanical rigidity to support high galvanometer speeds reaching up to 15,000 mm/s. The fully enclosed enclosure prevents ambient reflections and contains process particulates, which is critical when processing ceramics, acrylics, and delicate plastics in retail storefronts or compact studio spaces. Makeblock Co., Ltd. provides a 12-month manufacturer warranty alongside a 60-day price guarantee. From an xtool uv laser reliability perspective, prospective buyers must maintain regular optical cleaning intervals, as condensed smoke residues on ultraviolet turning mirrors degrade beam quality faster than on traditional long-wavelength diodes.

This standalone unit suits fine gift artisans, awards fabricators, and custom glass engravers needing dedicated precision without surplus accessories. Because it ships without an external air cleaner or feed conveyor, high-volume production studios will eventually face material feed bottlenecks and ventilation limitations if working with heavy smoke-generating substrates.

• 5W cold UV laser source with sub-10-micron spot size preventing edge charring and thermal stress
• Galvanometer scanning head running at working speeds up to 15,000 mm/s
• Dual 48MP camera vision system supporting automated focus and AI-assisted 2D-to-3D generation
• Rigid aluminum alloy construction weighing 49.6 pounds with full Class 4 protective enclosure

xTool F2 Ultra UV Laser Engraver

Engineered for out-of-the-box commercial output, this deluxe bundle configuration of the xTool F2 Ultra UV Laser Engraver builds around the identical 5000mW Class 4 ultraviolet core while solving workflow logistics. The manufacturer includes the Auto Conveyor, the RA3 rotary chuck fixture, and the SafetyPro AP2 smoke purifier. For an xtool glass laser engraver operating inside boutique retail shops, effective air purification is essential. When vaporizing surface coatings on glassware or etching dense plastic formulations, the AP2 filtration system draws harmful volatile organic compounds and fine particulates directly from the chamber before they escape into the work environment.

Integrating the RA3 rotary module transforms the 5W cold source into a specialized system for cylindrical workpieces, including tapered drinkware, crystal decanters, and fragile stemware. Traditional rotary setups running thermal diodes frequently fracture thin glassware due to excessive heat buildup along the rotational seam. Here, the sub-10μm beam sweeps across curved contours at speeds up to 15,000 mm/s without inducing thermal shock. Furthermore, pairing the Auto Conveyor with the dual 48MP camera alignment system automates batch engraving across linear rows of merchandise, streamlining repeat operations much like checking high-precision layout runs with a dewalt digital tape measure with laser in a commercial woodshop.

This deluxe bundle fits commercial sign makers, trophy production lines, and continuous manufacturing workshops that require rotary capabilities and immediate smoke scrubbing. Operators with limited table space or hobbyists working strictly on flat crystal plaques can bypass this configuration in favor of the base unit to minimize their equipment footprint.

• Turnkey bundle includes Auto Conveyor, RA3 rotary unit, and SafetyPro AP2 smoke purifier
• 5W ultraviolet cold light source eliminates burning, yellowing, or thermal cracking on delicate goods
• Dual 48MP cameras automate rotary placement and sequential conveyor batch engraving
• Galvanometer drive enables rapid continuous marking at speeds up to 15,000 mm/s

xTool F2 Ultra UV Laser Engraver

This focused package of the xTool F2 Ultra UV Laser Engraver packages the core 5W ultraviolet machine directly with a pair of specialized laser safety glasses. While the F2 Ultra features a built-in protective enclosure, physical eye protection remains a fundamental safety protocol whenever the operator opens the access door for substrate alignment, manual focusing, or chamber cleaning. Ultraviolet light operating at 355nm contains intense photon energy that can cause irreversible ocular trauma from diffuse reflections, making certified eyewear mandatory for any workspace adhering to rigorous safety standards.

Beneath the bundled safety gear, the hardware retains all primary F2 Ultra performance parameters. The 5000mW cold light source delivers micro-spot precision under 10μm, easily generating detailed 3D volumetric images inside clear glass blocks via software-driven point cloud processing. Unlike mechanical sandblasting or chemical acid etching, the machine executes intricate micro-fractures within the glass matrix while maintaining a pristine exterior surface. The high-speed 15,000 mm/s galvo head and dual 48MP automated cameras allow immediate calibration across heat-sensitive polymers, opaque acrylics, and structural ceramics without thermal discoloration.

This configuration suits educational institutions, small design studios, and independent makers who require standard-compliant ocular protection but do not yet require the heavy automated conveyor or rotary hardware. It serves as an accessible entry point into cold ultraviolet engraving before scaling up to secondary production accessories.

• Includes complete 5W UV laser platform accompanied by dedicated protective safety glasses
• Cold-beam technology delivers smooth edges on glass, crystal, acrylic, and ceramic stock
• Integrated dual 48MP camera array facilitates automated framing and 2D-to-3D volumetric carving
• Fast 15,000 mm/s galvanometer motion system housed within a secure protective chassis

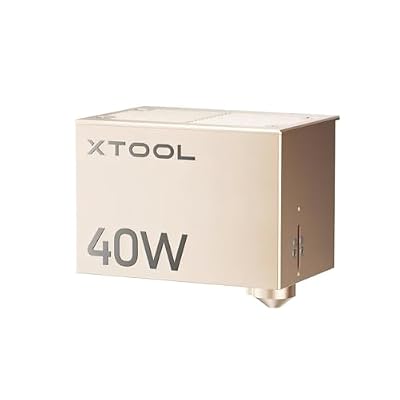

xTool S1 40W Laser Module

Best for: Existing S1 owners needing heavy cutting

Pros

• High 40W diode cutting efficiency
• One-pass cutting on 18mm wood
• Rapid 600 mm/s travel speed

Cons

• Compatible exclusively with xTool S1
• Cannot perform cold glass engraving

Stepping away from the delicate cold-ablation dynamics of ultraviolet machines, the xTool S1 40W Laser Module (part number P5010330) is an interchangeable high-output diode toolhead built solely for the xTool S1 enclosed gantry frame. Pumping out an immense 40,000mW of optical energy, this 6.45-pound module emphasizes raw cutting power rather than fine marking. While an xtool uv laser is engineered to prevent thermal damage, this 40W diode head intentionally concentrates high thermal energy to slice through 18mm cherry wood, 15mm dark opaque acrylic, and 0.1mm stainless steel foil in a single pass.

Measuring 12.2 by 7.48 by 12.99 inches, the module mounts directly to the S1 carriage assembly, reaching working traverse speeds up to 600 mm/s. Upgrading an existing S1 with this swappable head eliminates the expense of purchasing an entirely new machine frame, making it a cost-effective path for owners expanding into heavy craft fabrication. However, buyers conducting an xtool s1 laser module evaluation must recognize optical boundaries: blue diode radiation at 450nm passes straight through transparent glass and clear acrylic without marking, and its wide thermal profile will melt fragile thin plastics rather than cleanly etching them, as seen when comparing diode capabilities in our artilume laser engraver overview.

This module is recommended exclusively for current xTool S1 owners who need to cut thick wood sheets and opaque plastics. It provides zero functional utility for artisans dedicated strictly to engraving delicate glass, crystal awards, or bare jewelry metals.

• High-power 40W (40,000mW) diode laser head compatible solely with the xTool S1 chassis
• Achieves single-pass cutting through 18mm cherry wood and 15mm dark opaque acrylic
• Rapid 600 mm/s gantry travel speed for fast raster fill and vector slicing
• Direct mechanical upgrade weighing 6.45 pounds to replace lower-wattage toolheads

xTool 1064nm Infrared Laser Module

Best for: D1 Pro owners engraving precious metals

Pros

• Compressed 0.03mm precision spot
• 15KW peak pulse power
• Direct fit for D1 Pro frames

Cons

• Requires existing D1 Pro machine
• Low 2W continuous power rating

The xTool 1064nm Infrared Laser Module (model P5010176, manufactured by Makeblock Co., Ltd.) targets an entirely different material failure point: reflective metal engraving. Standard diode beams scatter off reflective surfaces like polished gold, brass, copper, and silver. This 2W infrared toolhead utilizes an ultra-fine 0.03mm by 0.03mm focal spot paired with an impressive 15KW peak pulse power to permanently etch bare metals and engineering plastics without requiring messy chemical contrast sprays. Engineered specifically for the xTool D1 Pro open gantry frame, the module converts a standard wood-burning tool into an accurate jewelry customization station.

Operating at travel velocities up to 400 mm/s, the module achieves sharp, detailed engraving across aluminum, zinc, platinum, copper, leather, and acrylic substrates. The assembly integrates with the D1 Pro carriage in a fast 3-second setup process, supported by a 1-year manufacturer warranty. The listing notes physical frame dimensions of 35.1 inches long by 14.1 inches wide for the associated system profile. Hardware advocates must note that with a continuous output rating of just 2W, this infrared head is exclusively an etching and marking module; it cannot slice structural timber or cut sheet metal plates.

Jewelers, metalsmiths, and makers focused on serializing metal tags or marking silver pendants will find this module to be a dependable, purpose-built upgrade for an existing D1 Pro. For users needing to process transparent glassware or cut thick organic boards, this module cannot substitute for an xtool uv laser or a high-wattage diode.

• 1064nm infrared laser wavelength with an ultra-fine 0.03mm x 0.03mm compressed spot
• 15KW peak pulse power engineered specifically for bare metals, jewelry, and plastics
• Quick 3-second plug-and-play installation for the xTool D1 Pro gantry frame
• Fast 400 mm/s engraving speeds supported by a 1-year manufacturer warranty

xTool F1 Ultra 20W Fiber &

Best for: High-volume mixed metal and wood production

Pros

• Dual 20W fiber and diode lasers
• Fast 10000 mm/s galvanometer drive
• 220mm square field expandable to 500mm
• Integrated 16MP smart camera

Cons

• Heavy 43.8-pound standalone frame
• Cannot engrave inside transparent crystal

Combining heavy cutting capacity with ultra-high-speed galvanometer marking, the xTool F1 Ultra 20W Fiber & Diode Dual Laser Engraver (model MXF-K002-B20 / P5010341) unites two distinct optical engines inside a single 43.8-pound enclosed chassis. Housing both a 20W fiber laser and a 20W blue diode laser, this hybrid machine reaches galvanometer travel speeds up to 10,000 mm/s. It features a spacious base working area of 220mm by 220mm, which extends to 220mm by 500mm when operating alongside an auto conveyor system.

The dual-wavelength design allows operators to toggle between processing metals and organic materials without swapping modular heads. The 20W fiber source excels at deep 3D embossing, relief texturing, and thin cutting on stainless steel (0.3mm), brass (0.4mm), and aluminum (0.2mm). Simultaneously, the 20W diode source cuts through 15mm wood and 12mm black acrylic. The machine incorporates an integrated 16MP smart camera for automatic batch orientation, a built-in fire safety alarm, and a Class 1 light-filtering housing designed for retail environments. Makeblock provides a 1-year warranty to protect commercial investments.

When conducting an xtool f1 ultra vs f2 ultra hardware analysis, distinct material limits emerge. The F1 Ultra is the superior choice for high-volume metal fabrication, deep relief coin marking, and timber cutting. However, because both the fiber and diode engines rely on high thermal absorption, the F1 Ultra cannot duplicate the cold photolytic marking of an xtool f2 ultra uv on clear glass, crystal, or sensitive white plastics without cracking the substrate.

• Dual-engine architecture pairing a 20W fiber laser with a 20W diode laser
• Galvanometer motion system delivering production marking speeds up to 10,000 mm/s
• Deep 3D metal embossing and thin metal cutting alongside 15mm wood slicing
• 16MP smart camera alignment, fire safety alarm, and enclosed retail-ready design

What Sets These Models Apart

Understanding which laser configuration fits your workshop requires comparing beam mechanics, output power, drive architectures, and material compatibility. The 5W ultraviolet models excel at cold photochemical ablation, making them the only systems capable of micro-etching fragile glassware and generating interior 3D crystal bubbles without surface stress fractures. Conversely, high-wattage diode heads and hybrid fiber units depend on thermal heating, making them better suited for deep wood slicing, relief metal carving, and rapid serial marking on industrial stock.

Drive mechanics also dictate workshop productivity. Galvanometer platforms like the F2 Ultra and F1 Ultra utilize internal oscillating mirrors to project the beam across stationary workpieces at rates between 10,000 and 15,000 mm/s. Gantry-based modules like the S1 40W and 1064nm infrared head physically transport the laser payload along mechanical linear rails at 400 to 600 mm/s. While gantry frames offer expansive cutting beds, galvo heads provide the rapid beam modulation required for intricate micro-engraving on small luxury merchandise.

Buying Tips for xTool Laser Engravers

When selecting between an xtool uv laser comparison candidate and an alternative wavelength module, begin by identifying your primary material substrate. Wavelength dictates how energy is absorbed by the workpiece. Ultraviolet light (355nm) operates as a cold beam that directly breaks molecular bonds, preventing thermal heat buildup. This makes an xtool uv laser engraver the only reliable option for zero-fracture glassware, clear acrylics, and heat-sensitive electronics. In contrast, 1064nm infrared light is readily absorbed by bare metals, while 450nm blue diode light targets organic materials like wood, leather, and dark plastics.

Workshop air quality and eye safety must be planned before purchasing your hardware. Class 4 open-frame units like the D1 Pro with an infrared module scatter invisible emissions and disperse harmful fumes directly into the room, requiring external enclosures and dedicated safety glasses. Fully enclosed systems like the F2 Ultra and F1 Ultra contain fugitive light emissions and feature integrated ports for external smoke filtration. Investing in dedicated multi-stage extraction, such as the AP2 purifier included in the deluxe bundle, protects sensitive galvanometer optics from smoke condensation that permanently damages scanning mirrors.

Finally, evaluate hardware warranties and component lifespans through a critical buyer advocate lens. Makeblock Co., Ltd. provides a 12-month manufacturer warranty across these machines, but wear items like optical protective windows, lens coatings, and air filters require periodic owner replacement. Ensure that your production volume aligns with the cooling system of the machine, avoid running high-output modules continuously at maximum capacity, and always maintain clean optical pathways to preserve focal consistency throughout the life of the machine.
