Woodpeckers Table Saw Sled Comparison: Precision, Rigidity, and Setup Reliability

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

Choosing the right table saw sled comes down to matching your workshop cuts with the right mechanical guidance system. A dedicated woodpecker table saw sled replaces loose miter gauge bars and uneven table surfaces with rigid fences, zero-clearance workpiece backing, and factory-machined miter bars. Woodworkers turn to aftermarket sleds when standard factory miter gauges fail to support wide panels, allow workpiece creeping during angled crosscuts, or cause splintered tear-out on delicate veneer and cross-grain cuts. While a traditional woodpecker miter gauge for table saw setups offers fast angle switching, a true sled carries the stock directly across the cast iron top to eliminate friction, racking, and slot slop entirely.

This woodpeckers table saw sled comparison covers exactly 6 specialized models designed and manufactured in Strongsville, Ohio. Each tool serves a distinct role in cut geometry and stock handling, ranging from multi-sided polygon indexing sleds and continuous taper jigs to micro-adjustable joint makers and extended auxiliary rip fences. By examining fence rigidity, miter bar adjustment mechanisms, and workpiece support, this guide helps you determine exactly which woodpeckers table saw sled to buy for your precision joinery and panel processing needs.

Which Woodpeckers Table Saw Sled Should You Buy

• Segmented turning and polygon frame builders: Choose the Woodpeckers inDexable Table Saw Miter Sled for its pre-set indexing stops for 3, 4, 5, 6, 8, and 12-sided assemblies and integrated offcut table.
• Precision box joint and tenon makers: Choose the Joinery Sled for its bearing-guided lead screw fine adjustment, 9 inches of total base extension, and multi-machine adaptability.
• Compact crosscut shops: Choose the Woodpeckers StealthStop Miter Sled with Drop for top-accessible leaf-spring calibration, micro-dot laminate, and a 15-inch footprint that fits smaller assembly benches.
• Furniture leg makers and rough stock millers: Choose the Woodpeckers Taper Sled to eliminate table saw sled fence deflection on angled tapers and straight-line edge jointing.
• Job site and contractor saw owners: Choose the Woodpeckers Auxiliary Rip Fence to upgrade narrow, short factory fences with 36 inches of rigid aluminum and infeed/outfeed stock supports.
• High-volume production and compound miter woodworkers: Choose the Woodpeckers AutoScale Miter Sled for its solid phenolic stability and self-compensating fence stop geometry from 0 to 60 degrees.

Woodpeckers inDexable Table Saw Miter Sled

Best for: Segmented turners and polygon frame woodworkers

Pros

• Indexed polygon stops
• Includes Drop Zone offcut table
• Sacrificial zero-clearance block

Cons

• Base platform is not extendable

The Woodpeckers inDexable Table Saw Miter Sled (model IMS-I) is an American-made crosscut solution engineered specifically for complex multi-sided work. Woodworkers building segmented turnings, multi-angle frames, and display boxes frequently encounter small cumulative angle errors that ruin glue-ups. The woodpeckers indexable miter sled addresses this challenge with dedicated mechanical detents for 3, 4, 5, 6, 8, and 12-sided objects. These indexed stops lock the protractor fence securely at the exact mathematical angle required, bypassing the parallax errors and visual alignment guesswork common to standard miter scales.

Offcut control is central to the design of this sled. The IMS-I includes an approximately 8-inch by 15-inch Drop Zone cut-off catch table that sits on the waste side of the blade. This platform catches cut pieces, keeping them from vibrating into the spinning blade teeth or dropping into open table saw throat plates. To maintain cut quality, the system incorporates a sacrificial zero-clearance block that supports delicate wood fibers right at the cut line. When paired with a sharp diablo 10 inch table saw blade, this backing reduces backside exit tear-out on pre-finished sheet goods and brittle hardwoods.

The sled rides on a precision-machined miter bar equipped with nylon leaf springs. These springs exert outward tension against the walls of the miter slot to absorb machine tolerances without binding. While an alternative like a rockler crosscut sled for table saw use often depends on expandable nylon expanding discs, the Woodpeckers continuous spring system maintains balanced lateral tension across the full length of the stroke.

• Integrated Drop Zone table measures approximately 8 inches by 15 inches to manage offcut waste safely
• Indexed angle stops engineered specifically for 3, 4, 5, 6, 8, and 12-sided polygon construction
• Replaceable sacrificial end block delivers true zero-clearance fiber support behind the workpiece
• Miter bar utilizes integrated nylon leaf springs to remove side play inside the table saw miter slot

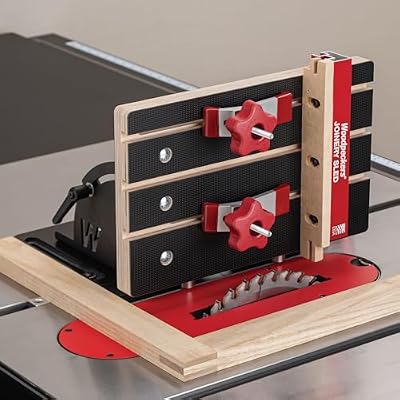

Joinery Sled

Best for: Box joint makers and router table users

Pros

• Micro-adjusting lead screw
• Nine inches overall travel extension
• Rigid 20-pound aluminum build

Cons

• Heavy fixture for quick crosscuts

The Woodpeckers Joinery Sled (model JSLED) provides mechanical micro-adjustability for demanding joinery operations. Weighing a substantial 20 pounds, this heavy-duty fixture is designed for both table saws and router tables. The sled provides 5-1/2 inches of base plate travel combined with an additional 3-1/2 inches from its adjustable base, producing an overall extension capacity of 9 inches. This travel range makes the woodpeckers joinery sled ideal for batch-cutting repeatable box joints, tenons, and half-laps where minute adjustments dictate joint friction.

Fine-tuning cut positions is handled by a bearing-guided lead screw mechanism. Instead of tapping a fence with a mallet and checking alignments with calipers, you rotate the lead screw to advance or retract the fence in controlled, predictable increments. The fence assembly also pivots from 44 degrees to 91 degrees, enabling woodworkers to tackle compound angles, angled tenons, and decorative mitered joinery without custom wooden wedges or makeshift shop jigs.

Workholding versatility is supported through three integrated track grooves running along the fixture base. These channels allow quick positioning of the included hold-down clamps or optional accessory clamping devices to immobilize workpieces vertically or horizontally against the fence. While its 21 x 11 x 10-inch dimensions and 20-pound weight make it less convenient for quickly cutting wide plywood panels, its rigidity prevents workpiece lifting when cutting heavy dadoes or deep box joint fingers.

• Dual-action extension system delivers up to 9 inches of total base plate and adjustable travel
• Bearing-guided lead screw allows precise micro-positioning for snug-fitting joinery
• Angle-adjustable fence locks at any setting between 44 degrees and 91 degrees
• Three track grooves provide flexible mounting locations for hold-down clamps and stock stops

Woodpeckers StealthStop Miter Sled with Drop

Best for: Small workshops needing compact miter accuracy

Pros

• Top-accessible miter bar adjustment
• Low-friction micro-dot laminate
• Retractable sideways StealthStops

Cons

• Requires optional extension beyond 15 inches

The Woodpeckers StealthStop Miter Sled with Drop (model SSCMS-DLX) is a compact crosscut platform that prioritizes repeatability and low sliding resistance. Constructed from 1/2-inch Baltic Birch plywood topped with a black micro-dot laminate surface, the sled glides easily across cast iron saw tops while resisting scratching and resin buildup. The 15 x 15-inch footprint is sized for everyday shop crosscutting, providing up to 29 inches of crosscut material support when paired with an optional extension track.

Calibrating the woodpeckers stealthstop miter sled to your specific machine is streamlined because all miter bar adjustments are performed directly from above the table. The miter bar features built-in leaf springs that automatically conform to worn or oversized miter slots, eliminating loose side-to-side play. This top-adjust design spares woodworkers the trial-and-error cycle of removing the sled, turning it over to adjust set screws, and testing the fit repeatedly.

The sled includes the proprietary StealthStop flip stop system, which flips sideways rather than lifting vertically. This sideways action minimizes mechanical backlash and eliminates interference when clearing stock against the fence. The protractor head uses positive stops for 3, 4, 5, 6, 8, and 12-sided assemblies, locking firmly into place with a tapered index pin. The tapered geometry ensures zero rotational play at each detent, preserving squareness even after thousands of cycles.

• Sturdy 1/2-inch Baltic Birch plywood base with durable, low-friction black micro-dot laminate
• Above-the-table miter bar adjustment system with leaf springs for fast slot calibration
• Retractable StealthStop flip stops feature minimal backlash and smooth sideways flipping action
• Tapered index pin locks positive stops for multi-sided shapes without mechanical slop

Woodpeckers Taper Sled

Best for: Furniture builders cutting tapers and edge joints

Pros

• Rigid no-deflect steel fence
• Full 37-inch miter guide bars
• Dual rise-and-run setup scales

Cons

• Not designed for 90-degree crosscutting

The Woodpeckers Taper Sled (model TSL-32) is a purpose-built fixture designed to solve the safety and accuracy challenges of cutting tapers and straight-line ripping rough lumber. Standard shop-made taper jigs rely on small hinges and lightweight aluminum runners that can flex under side pressure. The woodpeckers taper sled replaces those components with a 32-inch honeycomb-laminated plywood base and an exceptionally rigid powder-coated steel fence designed specifically to eliminate table saw sled fence deflection under clamp tension.

Workpiece guidance is handled by two 18.5-inch miter bars that join to create 37 inches of continuous track support in any standard 3/4-inch by 3/8-inch miter slot. The miter bars feature integrated T-track fittings, allowing users to guide the jig through the slot or run it against the rip fence depending on table geometry. Built-in measuring scales positioned precisely 24 inches apart simplify angle setups by allowing direct rise-and-run calculations without protractor conversion charts.

To keep hands well clear of the blade line, the TSL-32 includes two heavy-duty adjustable Knuckle Clamps that accommodate thin veneer stock or thick solid hardwood legs. Track clamp slots are milled directly into the base plate, offering multiple anchor points along the cut path. A flip stop on the steel fence guarantees repeatable shoulder positioning when running four-sided tapered table leg sets, and an included Woodpeckers Rack-It wall mount provides convenient storage.

• Includes two 18.5-inch miter bars forming 37 inches of guide support with T-track fittings
• Rigid powder-coated steel fence resists deflection under heavy clamp loads
• Non-slip honeycomb laminated 32-inch base plate with milled clamp track channels
• Dual setup scales spaced exactly 24 inches apart for rise-and-run taper calculations

Woodpeckers Auxiliary Rip Fence

Best for: Contractor and job site saw owners

Pros

• Extends fences up to 36 inches
• Dual 7-inch stock supports
• No machine drilling required

Cons

• Track clamps sold separately

The Woodpeckers Auxiliary Rip Fence (model ARF-BSCS) is a dedicated fence enhancement system designed to upgrade job site saws, vintage contractor saws, band saws, and router tables. Factory fences on compact saws often measure less than 3 inches high and lack straightness or mounting channels for featherboards. The woodpeckers auxiliary rip fence provides a 36-inch extruded aluminum fence profile measuring 3-1/2 inches tall, giving taller stock the vertical registration needed to prevent tipping during rip cuts.

Installation requires zero permanent modifications or drilling into your saw’s primary rip fence. The system uses two sliding clamping blocks that measure exactly 2 inches thick, matching the fence extrusion thickness for straightforward offset calculations. The clamping blocks secure the auxiliary fence against your factory fence using standard track clamps (not included with the system). Once clamped, it provides built-in T-track slots across its top and face for stops, hold-downs, and shop-made guards.

Stock support is further expanded through two included 7-inch material supports. These brackets slide into the bottom T-tracks and extend horizontally on the infeed and outfeed sides of the saw table, giving workpieces added baseline support as they enter and exit the blade zone. Weighing 10 pounds, the extruded aluminum construction adds structural rigidity without straining the locking mechanisms of lighter jobsite table saw rails.

• Machined 36-inch aluminum extrusion stands 3-1/2 inches tall for improved stock registration
• Dual sliding clamping blocks secure to factory fences under 3-1/4 inches without machine modification
• Includes two 7-inch material supports for infeed and outfeed stabilization
• Integrated T-track slots across the fence face and top edge accept stops and featherboards

Woodpeckers AutoScale Miter Sled

Best for: Production shops demanding climate-proof miter precision

Pros

• Auto-adjusting angle scale calibration
• Humidity-proof solid phenolic table
• Extendable fence up to 127cm

Cons

• Metric-only scale configuration

The Woodpeckers AutoScale Miter Sled (model ASMS-DEL-M) represents the top tier of table saw crosscut engineering, resolving one of the most frustrating limitations of traditional sleds: fence scale inaccuracy. On standard sleds, pivoting the fence away from 90 degrees shifts the stop block further from or closer to the blade line, rendering the fence scale useless. The woodpeckers autoscale miter sled features an auto-adjusting fence pivot that mechanically shifts the measuring scale as the fence rotates, keeping the length stop calibrated accurately at any angle from 0 to 60 degrees.

This Deluxe Metric set includes both a Metric Left Side Sled and a Metric Right Side Sled, along with a Metric Drop Zone table measuring 60cm long by 33cm wide. The main platform is machined from solid phenolic sheet material measuring approximately 60cm long by 47cm wide. Unlike Baltic birch or MDF sleds that absorb moisture and expand during humid summer months, solid phenolic is impervious to ambient humidity and temperature swings, guaranteeing a dead-flat sliding table year-round.

The fence system extends up to 127cm to support long moldings and wide architectural trims. Angle adjustments are guided by a laser-engraved protractor graduated in crisp half-degree increments with machined positive stops at common settings. The included Drop Zone incorporates a low-profile stealth stop adjustable between 2cm and 19cm, while two heavy-duty hold-down clamps and two flip stops secure stock firmly during the cut stroke.

• Auto-adjusting fence pivot keeps length scale accurately calibrated across all angles from 0 to 60 degrees
• Machined solid phenolic base is completely impervious to temperature and humidity variations
• Includes complete left and right sled platforms, two flip stops, and two hold-down clamps
• Extendable aluminum fence profile reaches out to 127cm for wide board crosscutting

What Sets These Models Apart

Woodpeckers approaches workpiece management through specific structural solutions rather than a one-size-fits-all sled. The base materials reflect each tool’s functional priority: solid phenolic is chosen for the AutoScale system to withstand environmental expansion, Baltic Birch with specialized low-friction laminates provides a lightweight sliding base for the StealthStop and Taper sleds, while solid aluminum and steel deliver maximum rigidity for rip and joinery fixtures.

Buying Tips for Woodpeckers Table Saw Sleds

Before purchasing any specialized sled, carefully inspect your table saw’s miter slot dimensions and surrounding clearance. Most Woodpeckers sleds are engineered around standard 3/4-inch wide by 3/8-inch deep T-slots. While the leaf-spring miter bars accommodate minor variations and slot wear, non-standard miter grooves on entry-level portable saws may require manual slot filing or custom shimming. Additionally, ensure your saw’s table has sufficient cast iron surface forward of the blade; compact job site tables often have limited infeed distance, which can cause large sleds to tip before the cut begins.

Consider your shop environment when choosing between Baltic birch plywood and solid phenolic bases. Baltic birch with micro-dot laminate offers excellent strength and smooth sliding at a moderate weight, making it easy to hang on a wall mount like the Rack-It. However, in non-climate-controlled garages or basement shops with significant humidity swings, solid phenolic models like the AutoScale sled provide superior dimensional stability, ensuring your cut line never binds against the blade kerf due to base plate cupping.

Finally, assess the clamping and zero-clearance needs of your everyday projects. If you routinely cut small, delicate parts, look for systems that include sacrificial zero-clearance blocks and drop-off catch tables, such as the inDexable or StealthStop models. These features prevent tiny offcuts from catching blade teeth and projecting back toward the operator. For heavy stock and rough-sawn lumber, prioritize rigid steel fences and heavy hold-down clamps that prevent material movement throughout the feed stroke.
