A dedicated emergency power setup requires an immediate, reliable transfer mechanism to disconnect the home from grid utility lines and direct generator output into critical distribution circuits. Implementing a westinghouse smart transfer switch resolves the dangerous prospect of electrical backfeeding, protecting utility line workers while eliminating the physical hassle of stringing hazardous extension cords through living areas during severe weather events. Understanding how automated switching gear communicates with generator engine controllers ensures your refrigeration, medical devices, well pumps, and climate control hardware stay continuously operational without manual intervention when municipal grids drop offline.

This guide analyzes six specific Westinghouse power components: two dedicated automatic transfer switches and four high-output transfer-ready generators designed to power them. These units differ significantly across current capacity, circuit segregation, fuel adaptability, and installation complexity. While the hardware ranges from a targeted 20-amp plug-in automatic transfer device to a massive 200-amp service disconnect switch, selecting the right pairing depends on whether your residence demands isolated appliance continuity or full-panel automated failover. Conducting a meticulous westinghouse transfer switch comparison reveals precisely how each device handles load balance, utility restoration, and continuous run demands.

Which Westinghouse Transfer Switches Should You Buy

• For homeowners who need a zero-wiring, plug-in automatic backup module to run an essential 120V refrigerator or sump pump, choose the Smart Transfer Switch 120V AC Compatible.
• For full-house panel automation with utility service disconnect and multi-stage air conditioner load shedding, select the Westinghouse 120 240 Volt.
• For households running delicate digital appliances, computer workstations, and home theater gear needing clean power below 3% total harmonic distortion, opt for the Westinghouse 12000 Peak Watt Tri-Fuel Portable.
• For rural or storm-prone properties prioritizing high starting wattage with extended dual-fuel runtime on gas or propane, select the Westinghouse 13500 Peak Watt Dual Fuel.
• For high-demand properties connected to municipal natural gas lines requiring continuous fuel feed and heavy wattage, invest in the Westinghouse 14500 Peak Watt Tri-Fuel Home.
• For reliable medium-to-large suburban emergency power seeking proven dual-fuel operation with push-button and remote startup, choose the Westinghouse 12500 Peak Watt Dual Fuel.

Smart Transfer Switch 120V AC Compatible

Best for: Plug-and-play single appliance emergency backup

Pros

• No complex wiring needed
• 2400W capacity for 120V loads
• Built-in status LED indicators
• IGBT solid-state switching

Cons

• Restricted to single 120V 20A circuit
• Not suitable for multi-circuit panels

The Smart Transfer Switch 120V AC Compatible acts as an external emergency transfer conduit designed specifically for single-circuit critical devices without requiring hardwired installation inside an electrical breaker panel. Operating as an external 120-volt, 20-amp switching appliance, this abeden smart transfer switch detects line utility loss and signals an attached westinghouse smart switch ready generator to pick up the load. It channels up to 2400 watts of emergency power directly into a standard 5-20R duplex outlet, giving homeowners an immediate fail-safe for critical basement sump pumps, medical refrigeration, or standalone food freezers.

Unlike heavy service entrance panels, this unit features a compact nine-pound chassis with surface mounting capability and clear LED indicator lights displaying real-time power status. Internally, the transfer mechanism utilizes solid-state insulated-gate bipolar transistor (IGBT) switching architecture with normally closed contact logic, allowing rapid source transitions without mechanical relay chatter. The system is engineered to interface directly with Westinghouse generator models equipped with the proprietary Smart Switch Ready connection, such as the WGen5300, WGen7500, WGen9500, and WGen12000 series.

While the plug-and-play simplicity eliminates electrician fees, prospective buyers must understand its inherent circuit boundaries. With a strict 20-amp limit and 120-volt ceiling rated up to 60 degrees Celsius, it cannot supply whole-house distribution boards, multi-wire branch circuits, or central HVAC condensers. When your backup needs expand beyond isolated mechanical appliances toward multi-room lighting, electric ranges, or central air conditioning, this compact plug-in switch gives way to a comprehensive whole-house service entrance model.

• Automatic utility loss sensing with rapid IGBT electronic transfer switching
• Integrated 5-20R 120-volt 20-amp outlet supporting loads up to 2400 watts
• Plug-and-play setup eliminating hardwired breaker panel alterations
• Direct control interfacing for Westinghouse portable units with Smart Switch Ready ports

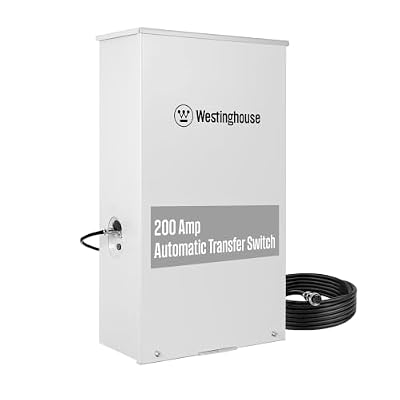

Westinghouse 120 240 Volt

Best for: Whole-home automatic emergency standby power

Pros

• 200A service disconnect rating
• Integrated 4-circuit A/C load shedding
• ETL listed NEMA 3R outdoor enclosure
• Maintains generator battery during standby

Cons

• Requires professional electrical installation
• Generator and power inlet sold separately

Homeowners seeking true standby power convenience without the prohibitive expense of a permanent pad-mounted generator can turn to the Westinghouse 120 240 Volt. Widely known in the industry as the westinghouse wats200, this 200-amp automatic transfer switch bridges your entire electrical service entrance with a compatible portable generator. When municipal power collapses, the internal brain activates the connected generator via a dedicated 25-foot ST control cable, automatically transfers house electrical circuits over to generator supply, and transitions back to utility power once the grid stabilizes before initiating a cool-down shutdown.

Managing inductive spikes is critical when powering an entire residential breaker panel from a portable machine. The WATS200 incorporates smart air conditioning load management capable of actively shedding up to four independent central cooling circuits. By staggering compressor starts and shedding excessive demand, the switch prevents sudden engine stalls and protects sensitive motor windings. The enclosure measures 27.7 inches by 15.6 inches by 7.8 inches, weighing 32.4 pounds, and is ETL listed to UL 1008 standards within a robust NEMA 3R outdoor-rated grey housing designed to endure rain, sleet, and extreme weather.

The included 25-foot 7-pin control cable also trickles a maintenance charge back to the generator starting battery while the unit rests on utility standby, ensuring reliable engine cranking when an outage strikes. However, this level of comprehensive integration requires professional installation by a licensed electrician to satisfy local building codes. Power inlet boxes, heavy-gauge 50-amp cords, and the generator itself must be acquired separately. For whole-home coverage, this switch serves as the central command post for any modern Westinghouse backup ecosystem.

• 200-amp service disconnect capacity rated for 120/240-volt single-phase residential grids
• Intelligent load shedding capable of managing up to four separate air conditioning circuits
• NEMA 3R indoor and outdoor enclosure ETL listed to stringent UL 1008 safety standards
• Includes 25-foot 7-pin ST control cable for automatic engine starting and battery maintenance

Westinghouse 12000 Peak Watt Tri-Fuel Portable

Best for: Clean backup power for sensitive home electronics

Pros

• Under 3 percent THD inverter output
• Tri-fuel capability including natural gas
• Quiet 64 dBA operation
• 50A and 30A transfer-ready receptacles

Cons

• Higher mechanical complexity than open-frame units
• Lower running wattage on natural gas

Supplying clean, non-distorted power to modern electronic controls, microprocessor-driven appliances, and smart home hubs is where the Westinghouse 12000 Peak Watt Tri-Fuel Portable excels. Known natively as the westinghouse igen12000tfc, this high-output inverter unit delivers up to 12,000 peak watts and 9,000 running watts on gasoline, with 11,000 peak and 8,100 running watts on propane, and 9,800 peak with 7,200 running watts on natural gas. Unlike standard mechanical alternators, its true inverter output produces less than 3% total harmonic distortion (THD), guaranteeing safe operation for computers, variable-speed HVAC blowers, and sensitive microcircuits.

When comparing home emergency systems against standard pad equipment like a generac 50 amp generator, the iGen12000TFc offers outstanding versatility through its transfer-switch-ready panel. It comes equipped with a 120/240-volt 14-50R 50-amp outlet alongside a twist-lock L14-30R 30-amp receptacle, making it straightforward to feed an external transfer switch or interlock enclosure. The heavy-duty 457cc 4-stroke OHV engine operates within a sound-insulated chassis featuring Eco Mode, generating as low as 64 dBA of noise while achieving up to 19 hours of runtime at 25% load on its 7.9-gallon fuel reservoir.

Operational telemetry is displayed across a digital LED data center showing voltage output, active wattage, runtime remaining, fuel volume, and lifetime engine hours. Safety is reinforced with integrated low-oil automatic shutdown and an active carbon monoxide (CO) sensor. While its inverter architecture yields exceptionally clean power and fuel economy, users running massive whole-home electric heating banks may find the 9,000 continuous running wattage on gasoline slightly limiting compared to higher-displacement open-frame generators in the Westinghouse lineup.

• Clean electrical generation delivering less than 3 percent total harmonic distortion for electronics
• Tri-fuel flexibility operating seamlessly across gasoline, liquid propane, and utility natural gas
• Transfer-switch-ready panel featuring heavy 14-50R 50-amp and L14-30R 30-amp outlets
• Quiet 64 dBA sound profile with digital LED data center and remote key fob starting

Westinghouse 13500 Peak Watt Dual Fuel

Best for: Heavy-load emergency backup on dual fuels

Pros

• 10500 running watts on gasoline
• Massive 500cc engine displacement
• Up to 19 hours runtime
• Remote start key fob included

Cons

• No natural gas fuel inlet
• Heavier unit requiring dedicated outdoor staging

For households facing demanding inductive startup loads from large well pumps, sewage ejectors, and multi-ton compressors, the Westinghouse 13500 Peak Watt Dual Fuel represents a formidable power source. Designated under model name westinghouse wgen10500dfc, this machine pushes 13,500 peak watts and 10,500 running watts on gasoline, backing that up with 12,500 peak watts and 9,500 running watts on liquefied petroleum gas. Powered by a brawny 500cc 4-stroke OHV engine fitted with a durable cast iron sleeve, it supplies brute mechanical muscle to sustain high inrush currents without tripping switchgear.

The power distribution faceplate is built specifically for home backup connectivity, highlighting a transfer-switch-ready 120/240-volt 14-50R 50-amp receptacle, a twist-lock L14-30R 30-amp outlet, and two GFCI-protected standard 120-volt household duplexes. Every outlet is shielded with durable rubber covers to keep out driving rain and debris. Its 9.5-gallon fuel tank delivers up to 19 hours of continuous operation on gasoline, giving homeowners the ability to navigate extended overnight outages without frequent midnight refueling runs in hazardous weather.

The generator includes push-button electric start, recoil backup, and a remote start key fob with a 12-volt battery charging system to keep starting power primed. Added safety functions include automatic low-oil shutdown and a carbon monoxide sensor that cuts ignition if dangerous exhaust fumes accumulate. While the WGen10500DFc delivers tremendous output, it lacks continuous natural gas fueling ports, meaning homeowners must maintain physical stores of gasoline or pressurized propane tanks during emergency events.

• Potent 500cc 4-stroke OHV engine with long-lasting cast iron cylinder sleeve
• 10,500 running watts and 13,500 starting watts on standard unleaded fuel
• Generous 9.5-gallon steel fuel tank providing up to 19 hours of continuous runtime
• Equipped with covered 50-amp 14-50R and 30-amp L14-30R transfer-ready outlets

Westinghouse 14500 Peak Watt Tri-Fuel Home

Best for: Maximum output whole-house continuous backup

Pros

• 11500 running watts gasoline output
• Continuous natural gas fuel operation
• Clean power under 5 percent THD
• Durable copper alternator windings

Cons

• Only two standard household outlets provided
• Substantial physical footprint

The largest capacity generator in this lineup is the Westinghouse 14500 Peak Watt Tri-Fuel Home, known as the westinghouse wgen11500tfc. Engineered specifically to supply expansive residences through high-capacity transfer equipment like the WATS200, this machine unleashes 14,500 peak watts and 11,500 running watts on gasoline, 13,500 peak watts and 10,500 running watts on propane, and an impressive 12,000 peak watts and 9,500 running watts on municipal natural gas lines.

Driven by a massive 550cc 4-stroke OHV engine, the WGen11500TFc is engineered with heavy-gauge durable copper alternator windings. Copper windings dissipate heat far more effectively than aluminum alternatives, ensuring cooler running temperatures, extended mechanical life, and reduced electrical resistance under high current draw. Despite its open-frame power density, the unit produces clean electrical power with less than 5% total harmonic distortion, making it safe to run residential electronic appliances, communication hardware, and home automation systems without line conditioner intermediaries.

Connecting this tri-fuel powerhouse to your home gas meter eliminates the logistical burden of storing gallons of volatile gasoline or swapping freezing propane tanks during prolonged winter blizzards. Runtime on its 9.5-gallon gasoline tank reaches up to 19 hours, while a standard 20-pound propane cylinder sustains up to 7 hours of operation. The trade-off for this immense continuous wattage lies in its substantial physical weight and heavy exhaust volume, necessitating dedicated outdoor positioning and professional transfer switch wiring to safely handle its 11,500-watt running output.

• Continuous tri-fuel capability supporting gasoline, propane, and utility natural gas
• Colossal 550cc OHV engine yielding 11,500 running watts and 14,500 starting watts on gas
• Durable copper windings and advanced regulation maintaining THD under 5 percent
• Integrated carbon monoxide detection with automatic safety shutoff protection

Westinghouse 12500 Peak Watt Dual Fuel

Best for: Balanced dual-fuel emergency household circuits

Pros

• 9500 running watts gasoline capacity
• Six total protected output receptacles
• Carbon monoxide safety sensor
• Electric push-button and remote start

Cons

• Smaller 6.6-gallon fuel tank
• Lacks natural gas fuel compatibility

Serving as one of the most widely deployed backup power plants across North America, the Westinghouse 12500 Peak Watt Dual Fuel balances raw output with dependable operational simplicity. Cataloged as the westinghouse wgen9500dfc, this machine generates 12,500 peak watts and 9,500 running watts on gasoline, along with 11,200 peak watts and 8,500 running watts when powered by liquid propane. Its 457cc 4-stroke OHV engine features a cast iron sleeve, automatic low-oil shutdown, and automatic voltage regulation to stabilize voltage delivery across fluctuating panel demands.

The unit is engineered from the ground up for transfer panel synchronization. Its faceplate features one transfer-switch-ready twist-lock 120V L14-30R 30-amp outlet, one RV-ready 120/240V 14-50R 50-amp outlet, and two standard GFCI 120V 5-20R 20-amp duplex receptacles, delivering six total protected connection points. Operators can fire up the engine effortlessly using push-button electric start, a manual recoil cord, or the included wireless remote start key fob, which pairs perfectly with standby protocols when severe storms make stepping outside unsafe.

On a full 6.6-gallon fuel tank, the WGen9500DFc delivers up to 12 hours of uninterrupted runtime at typical loads. While its 6.6-gallon tank requires more frequent refueling than the 9.5-gallon cells found on the larger 10,500-watt and 11,500-watt units, its compact framework makes it easier to maneuver through tight side yards and storage sheds. For homeowners seeking a dependable middle ground capable of energizing critical lighting, refrigeration, well pumps, and air conditioning compressors through a manual or automatic transfer board, this dual-fuel workhorse delivers consistent, proven reliability.

• 9,500 continuous running watts and 12,500 peak starting watts on regular gasoline
• Dual-fuel functionality with seamless switching between gasoline and liquid propane
• Comprehensive outlet selection including covered 50-amp and 30-amp transfer ports
• Wireless key fob remote start system paired with integrated carbon monoxide sensor

What Sets These Models Apart

Selecting the right backup component requires comparing amperage ratings, fuel architecture, operational automation, and target circuit capacities across both switches and companion generators. The table below illustrates how these six models evaluate across primary technical specifications:

Buying Tips for Westinghouse Transfer Switches

When deciding which westinghouse transfer switch to buy, your first task is distinguishing between whole-house service disconnect switches and single-circuit modules. A 200-amp service-rated automatic transfer switch like the WATS200 manages your main panel directly, meaning every standard circuit in the house receives backup power subject to generator capacity and load management. Conversely, single-circuit 120V switches isolate one 20-amp loop without panel rewiring, making them ideal for renters or budget-conscious homeowners who only need to protect a basement drainage pump or food freezer from power loss.

Total harmonic distortion (THD) and fuel plumbing represent critical performance boundaries. While low-voltage consumer smart devices like a third reality smart switch or a tuya smart switch operate within home automation networks without heavy mechanical reliance, emergency generator switchgear handles high-amperage alternating current where dirty power can destroy delicate motor boards. Inverters like the iGen12000TFc maintain THD under 3%, whereas open-frame generators range between 5% and standard limits. Furthermore, selecting a tri-fuel model provides an infinite fuel run via your municipal natural gas meter, removing the hazard of storing bulk gasoline in cans that degrade over time.

Finally, evaluate neutral-ground bonding and electrical code compliance before undertaking installation. Portable generators often feature bonded neutrals, which can cause nuisance tripping in transfer switches that switch the neutral conductor alongside hot legs. Always verify whether your transfer switch requires a floating neutral generator configuration. Consulting a licensed electrician ensures your disconnect hardware meets local building regulations, incorporates properly sized power inlet boxes, and satisfies UL 1008 transfer safety mandates.
