DeWalt VSR Drill Breakdown: Durability, Motor Specs, and Chuck Performance

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

Selecting an effective dewalt vsr drill requires looking past headline branding to assess motor current limits, gearbox construction, and chuck retention under prolonged mechanical loads. A variable speed reversible drill depends on precise trigger modulation to start bits on smooth steel, clear packed chips from dense timber, and back out jammed hardware without stripping fasteners. However, sustained drilling creates heavy thermal buildup in motor windings and severe radial deflection at the chuck jaws, making component durability the primary differentiator between models.

This teardown covers exactly 6 models, contrasting dedicated timber-framing powerhouses and heavy-duty shop units against percussion hammer models and portable battery drivers. These units differ significantly in gearing configurations, clutching mechanisms, housing materials, and chuck retention systems. Understanding these mechanical trade-offs clarifies which model can withstand your daily workflow and which unit is likely to stall, overheat, or slip when pushed beyond its design limits.

Which DeWalt VSR Drills Should You Buy

• For heavy hole-sawing, plumbing rough-ins, and high-torque timber framing: DEWALT DWD450 VSR Stud and Joist
• For continuous high-speed steel fabrication and standard bench work: DEWALT DWD112 8A 3 8″ VSR
• For mixed construction tackling structural lumber, steel, and light brick: DEWALT Hammer Drill
• For balanced horizontal driving and reduced wrist strain in assembly: DEWALT Drill
• For secondary workstations needing an inspected utility tool: Dewalt DWD110KR 7 Amp 0
• For cordless mobility across residential repairs and light maintenance: DEWALT 20V Max Cordless Drill Driver

DEWALT DWD450 VSR Stud and Joist

Best for: Heavy structural framing and rough-in boring

Pros

• Mechanical slip clutch in low gear
• High-torque 11-amp motor
• Metal gear housing construction
• Dual-range variable speed transmission

Cons

• Heavy specialized framing frame
• Top speed limited to 1300 rpm

The DEWALT DWD450 VSR Stud and Joist represents the heavy-duty tier of specialized framing tools, designed specifically for boring large-diameter holes through thick structural lumber. Operating on a 110-volt corded connection, it features an 11-amp motor producing up to 300 watts of maximum power. Unlike standard pistol-grip units, the dewalt dwd450 vsr stud and joist utilizes a dedicated two-speed mechanical transmission with variable speed ranges of 0 to 330 rpm in low gear and 0 to 1,300 rpm in high gear. Low gear integrates a mechanical slip clutch designed to disengage the drive train when a self-feed bit or hole saw binds, protecting internal gears and shielding the operator from sudden wrist-wrenching rotational kickback.

Durability in this tool centers on a robust metal-gear housing and 100 percent ball-bearing construction that resists housing deflection during heavy lateral leverage. To control its 50 in-lb torque rating, the unit incorporates an adjustable front handle alongside a two-position side handle, allowing tradespeople to brace the tool firmly between framing members. The tool is equipped with a 13-millimeter (1/2-inch) chuck capacity to seat thick bit shanks firmly during heavy boring cycles.

This model is built specifically for plumbers, electricians, and framers running heavy mechanical rough-ins where continuous low-speed torque is mandatory. However, its substantial mass and specialized chassis make it cumbersome for everyday fastener driving, sheet metal fabrication, or tight cabinetry tasks. For benchtop maintenance or lighter drilling cycles, this specialized brute gives way to standard inline pistol models like the DWD112.

• 11-amp motor engineered for high-torque corded applications
• Mechanical clutch in low gear to prevent bit lock-up and protect internal gears
• Two variable speed ranges offering 0-330 rpm and 0-1300 rpm
• Full metal-gear housing with 100 percent ball bearing construction

DEWALT DWD112 8A 3 8″ VSR

Best for: Continuous benchtop metalwork and fabrication

Pros

• All-metal ratcheting keyless chuck
• High-speed 2500 rpm motor
• Durable all ball-bearing assembly

Cons

• Single gear ratio
• Lacks mechanical slip clutch

The DEWALT DWD112 8A 3 8″ VSR is an established standard for fabricators, woodworkers, and maintenance shops needing steady line-voltage power without battery duty-cycle limitations. The listing notes an 8-amp motor delivery with a 7-amp rating on 120 volts, providing up to 300 watts of output power. Operating through a single-speed variable trigger from 0 to 2,500 rpm, this dewalt corded vsr drill provides the rotational speed necessary for drilling clean holes in sheet metal and standard lumber. Its internal build relies entirely on ball-bearing construction to maintain armature alignment under continuous use.

Chuck design is a critical aspect of dewalt drill chuck reliability on this model. The tool features an all-metal 3/8-inch (9.53 mm) ratcheting keyless chuck that allows operators to hand-tighten bit shanks while audible internal clicks confirm jaw engagement. While convenient, keyless ratcheting sleeves require clean bit shanks to prevent jaw slippage when encountering hard knots or sudden resistance. The listing cites a wood drilling capacity of 0.01 inches and metal capacity of 9.53 millimeters, alongside a soft-grip handle for comfortable daily operation. Pairing this machine with rated bits from a reliable dewalt drill accessories collection ensures proper shank fit and minimal runout.

This pistol-grip tool suits general shop technicians and metalworkers who require high rotational speed and unlimited runtime at a fixed bench. It operates efficiently in standard metal drilling, but it gives way to the hammer-action DW511 when masonry substrates enter the picture, or to the DWD450 when high-diameter structural boring requires gear reduction rather than sheer spindle speed.

• 8-amp motor delivering 300 watts of continuous corded performance
• All-metal 3/8-inch ratcheting keyless chuck for secure bit retention
• Single-speed VSR trigger modulating smooth operation from 0 to 2,500 rpm
• Durable all ball-bearing construction paired with an ergonomic soft-grip handle

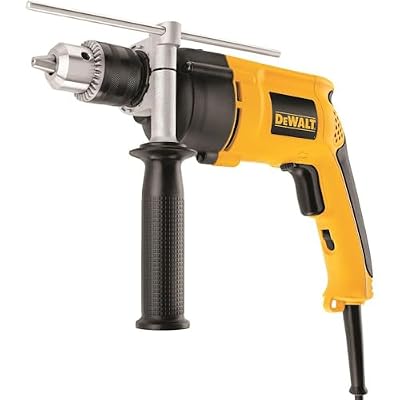

DEWALT Hammer Drill

Best for: General fabrication mixed with light masonry drilling

Pros

• Dual hammerdrill and drill operating modes
• 360-degree side handle with depth rod
• Lightweight 4.3-pound housing

Cons

• No mechanical clutch protection
• Single gear transmission

The DEWALT Hammer Drill, carrying model designation DW511, bridges the gap between pure rotary drilling and masonry percussion. Powered by a 110-volt motor listed at 7.8 amps (with an amperage specification of 6.7 A) and 300 watts of maximum output, this tool incorporates an internal mechanism that delivers dual-mode capability: standard drilling for wood and metal, or hammer drilling for brick, block, and light concrete. The dewalt dw511 hammer drill operates at a single variable speed reaching up to 2,700 rpm, managed by an integrated VSR trigger that enables controlled hole starts on hard masonry without wandering.

Weighing 4.3 pounds, the DW511 is engineered to reduce operator fatigue during horizontal wall fastening and overhead anchor drilling. It features a heavy-duty 0.5-inch (13 mm) chuck capable of clamping larger masonry bit shanks firmly. The listing details a wood drilling capacity of 1.5 inches and a metal drilling capacity of 0.5 inches. To maintain drilling control against percussive vibration, the tool includes a 360-degree rotating side handle equipped with an integrated depth rod for setting uniform hole depths during anchor installation.

This hammer drill is ideal for general contractors, remodelers, and commercial maintenance personnel who frequently alternate between wood framing, metal studs, and poured block foundations. However, it lacks a mechanical slip clutch for high-torque bit jams. For sustained heavy concrete demolition, users should step up to a dewalt sds plus hammer drill platform, while those needing only metal assembly can select a lighter non-hammer tool like the DWD112.

• Dual-mode selector for standard rotary drilling and percussion hammer action
• 7.8-amp motor with built-in overload protection
• Heavy-duty 1/2-inch chuck accommodating large masonry bits up to 2,700 rpm
• Includes a 360-degree adjustable side handle with an accurate depth rod

DEWALT Drill

Best for: Repetitive assembly requiring neutral wrist balance

Pros

• Mid-handle grip centered balance
• All-metal ratcheting keyless chuck
• Generates 150 in-lb maximum torque

Cons

• Chuck limited to 3/8-inch bits
• Tethered to power outlet

The DEWALT Drill, designated as model DWD115K, is engineered specifically around operator ergonomics and balance. While it shares many internal specifications with traditional pistol-grip tools, including an 8-amp motor operating on 120 volts and generating 300 watts of output, the physical chassis uses a mid-handle configuration. In a direct dewalt dwd112 vs dwd115k assessment, this mid-handle layout centers the tool weight directly beneath the user’s palm. This balanced posture reduces forward canting and wrist fatigue during repetitive horizontal drilling and downward production driving.

The tool produces up to 150 in-lb of maximum torque and features a single-speed variable transmission running from 0 to 2,500 rpm. Bit retention is managed by a 3/8-inch all-metal, ratcheting, keyless chuck designed to maintain continuous clamping pressure against rotational vibration (though the listing specification table notes a maximum chuck size of 20 millimeters). Supported internally by an all ball-bearing architecture, the tool handles high radial loads during extended shop duty cycles without early bearing race failure.

The DWD115K is suited for assembly technicians, cabinetmakers, and shop fabricators who spend continuous hours drilling fixture holes and setting hardware. Where it gives way is in heavy outdoor jobs or masonry work, where the lack of hammer capability and a corded tether limit versatility compared to the DW511 or cordless compact drill platforms.

• Mid-handle ergonomic grip design provides improved balance and less wrist fatigue
• 8.0-amp motor producing 150 in-lb of maximum driving torque
• 3/8-inch all-metal ratcheting keyless chuck for bit retention
• All ball-bearing motor assembly supporting a variable speed range of 0-2,500 rpm

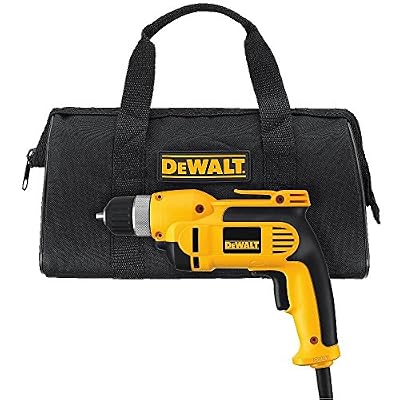

Dewalt DWD110KR 7 Amp 0

Best for: Secondary shop benches needing basic utility drilling

Pros

• Keyless ratcheting bit retention
• Variable speed 0-2500 rpm trigger
• Amazon Renewed guarantee protection

Cons

• Refurbished pre-owned unit
• Listing notes 0.38-inch wood capacity

The Dewalt DWD110KR 7 Amp 0 provides a factory-vetted entry into the corded VSR ecosystem through the Amazon Renewed program. The title identifies the unit as a 7-amp drill while the key features cite an 8.0-amp motor specification running on 120 volts, delivering 300 watts of maximum power. This refurbished machine has undergone professional inspection, testing, and cleaning by Amazon-qualified suppliers to ensure electrical and mechanical operation that matches original factory specifications, supported by the replacement or refund protections of the Amazon Renewed Guarantee.

Under the casing, the dewalt dwd110kr renewed retains classic contractor-grade hardware, including full ball-bearing construction and a pistol-grip handle covered in soft rubber overmolding. The single-speed variable trigger runs smoothly from 0 to 2,500 rpm, allowing the operator to initiate holes with controlled low-speed torque. The tool produces 11.3 ft-lb of maximum torque and utilizes a 3/8-inch (0.38-inch) ratcheting keyless chuck. The listing specifies a maximum wood drilling capacity of 0.38 inches, pointing toward light-to-moderate duty cycles.

This tool represents a practical choice for secondary utility stations, small woodworking shops, or homeowners seeking commercial corded reliability on a strict budget. While fully inspected, it gives way to brand-new factory-boxed models like the DWD112 or DWD115K when fleet purchasers require virgin components and full standard factory warranty paperwork for commercial jobsite accounting.

• Professionally inspected and tested under the Amazon Renewed Guarantee
• Delivers up to 11.3 ft-lb of torque with a 0-2,500 rpm variable speed trigger
• 3/8-inch ratcheting keyless chuck for fast, manual bit changes
• Ball-bearing construction with a comfortable soft-grip pistol handle

DEWALT 20V Max Cordless Drill Driver

Best for: Unrestricted residential repair and remote maintenance

Pros

• Cordless lithium-ion battery mobility
• Two-speed mechanical transmission
• Includes two batteries charger and bag

Cons

• Not suitable for masonry or concrete
• Not rated for industrial duty cycles

The DEWALT 20V Max Cordless Drill Driver, listed as model DCD771C2, introduces cordless mobility to this variable-speed group. Powered by a 20-volt lithium-ion battery system, the tool includes two 1.3Ah compact battery packs, a dedicated charger, and a contractor storage bag. The motor delivers 300 unit watts out (UWO) of power, managed by a dual-speed transmission that provides low-speed driving torque from 0 to 450 rpm and high-speed drilling from 0 to 1,500 rpm. Maximum torque is rated at 650 in-lb in the specifications, with 530 in-lb cited across general metrics.

Bit retention relies on a 1/2-inch single-sleeve ratcheting chuck that accepts standard straight shanks and larger heavy-duty drill bits. The dewalt dcd771c2 cordless drill driver is optimized for domestic maintenance, furniture assembly, hanging shelving, and drilling light metal, plastic, and dimensional lumber. As detailed in our comprehensive dewalt cordless tools 20v review, this system excels when climbing ladders, working in attics, or moving across job sites away from AC wall outlets.

The manufacturer listing explicitly outlines duty-cycle boundaries for this machine: it is suitable for DIY, light construction, and general screwdriving, but not suitable for drilling into concrete or masonry, nor for heavy industrial use. When continuous, high-draw drilling is required throughout an entire workday, battery packs deplete rapidly, and the tool gives way to heavy continuous corded platforms like the DWD112 or the masonry-rated DW511.

• Cordless 20V Max platform including two 1.3Ah batteries and charger
• Two-speed mechanical gearbox running 0-450 rpm and 0-1,500 rpm
• 1/2-inch single sleeve ratcheting chuck with an ergonomic grip handle
• Produces up to 300 unit watts out for residential repairs and light construction

What Sets These Models Apart

Evaluating this dewalt vsr drill comparison requires analyzing how transmission steps, chuck dimensions, and power sources align with real-world mechanical stress. The table below highlights key performance attributes across all six models.

Buying Tips for DeWalt VSR Drills

When selecting a dewalt variable speed reversible drill, the first engineering decision is matching motor power to your projected duty cycle. Corded drills running on 7-amp to 11-amp circuits provide uninterrupted operation that battery tools cannot sustain during heavy, high-draw drilling. If your work involves continuous metal fabrication or drilling dozens of large-diameter holes in structural timber, line power eliminates battery overheating and cell degradation. However, high-amperage corded tools demand mechanical protection: tools like the DWD450 include mechanical clutches specifically to absorb rotational energy when bits lock, preventing motor burnout and operator injury.

Chuck mechanism selection directly influences day-to-day productivity and bit retention. Keyless ratcheting chucks on the DWD112, DWD115K, and DCD771C2 allow rapid single-handed bit swaps without searching for a chuck key. However, under high torque or aggressive vibration, keyless sleeves can slip if bit shanks are dirty, undersized, or improperly seated. For heavy masonry and large timber bits, 1/2-inch chuck assemblies provide significantly more radial clamping force than compact 3/8-inch systems. Those outfitting a workshop can compare these chuck systems within our broader dewalt drill set evaluation.

Ergonomics and transmission gearing should match the orientation of your work. Traditional pistol-grip drills place the handle at the back, allowing you to push your body weight directly behind the spindle. Conversely, mid-handle models like the DWD115K place the hand directly under the tool center of gravity, drastically cutting forearm strain during repetitive bench assembly. Finally, evaluate whether your workload requires dual-range gearing: high spindle speed (2,500 rpm) is ideal for small twist drills in mild steel, whereas large hole saws demand a low-range transmission (under 500 rpm) to generate torque without burning bit cutting teeth.
