Craftsman Riding Mower Deck Rebuild Guide: Essential Parts Analyzed
As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.
Craftsman riding mower decks absorb significant mechanical stress throughout each cutting season, causing drive belts to stretch, spindle bearings to wear, and alignment linkages to sag. When cut quality degrades or strange vibrations emerge, completing a focused craftsman lawn mower deck rebuild is far more cost-effective than replacing an entire cutting assembly. Knowing which craftsman riding mower deck parts to buy depends on pinpointing whether your issue is rotational friction, drive slipping, uneven deck pitch, or damaged safety shielding. By isolating worn components early, you can restore clean cutting performance without purchasing unnecessary parts.
This rebuild guide examines 6 essential craftsman riding mower deck parts engineered for popular 36-inch, 42-inch, and 46-inch decks. These components cover the primary wear points across the cutting deck system: an aramid-reinforced drive belt, dual pre-greased spindle assemblies, stamped steel pulley guards, a heavy-duty clutch cable, a galvanized front lift link, and a complete chute deflector kit with replacement hardware. While each part addresses a unique failure mode, they all provide factory-matched fitment across classic 917-series and modern chassis platforms.
Which Craftsman Riding Mower Decks Should You Buy
- If your blades slip, smoke, or lose cutting speed under load, select the UDC Parts 144959 Deck Belt Replacement for aramid-corded drive power.
- If your deck produces grinding noises or severe vibration, buy the Spindles Fit for Craftsman 42 inch two-pack to replace failing mandrel assemblies.
- If you operate near thick brush or rocks that can damage belt channels, install the 2 Set 783-06424A-0638 Deck Spindle Pulley guards for impact defense.
- If the deck lever feels loose or fails to engage the blades, choose the CRAFTSMAN 42″ RIDING MOWER DECK ENGAGEMANT cable to restore mechanical tension.
- If your cutting height is uneven or the deck tilts side-to-side, install the 532195270 Front Deck Lift Link to reset suspension alignment.
- If your discharge chute is missing or cracked, choose the Replacement Part for Craftsman 130968 Husqvarna deflector kit to restore lawn safety.
UDC Parts 144959 Deck Belt Replacement
UDC Parts 144959 Deck Belt Replacement
8.6/10 Our score
- Color
- Gray
- Size
- 95.4"L x 0.5"W
- Dimensions
- 95.4 x 0.5 x 0.1 inches
Best for: Restoring drive tension on 42-inch decks
Pros
- Aramid tensile cord reinforcement
- Two-layer wrapped protective cover
- One-year product support
Cons
- Deck model verification required
The UDC Parts 144959 Deck Belt Replacement drives the rotating mandrels across popular 42-inch tractor decks. Belts are commonly the first failure point in a cutting deck due to high friction, heat buildup, and grass debris accumulation. This specific craftsman 144959 deck belt replacement measures 0.50 inches wide by 95.40 inches long, ensuring factory-matched belt tracking without binding against factory guides. When maintaining classic craftsman lawn tractors, replacing a stretched or glazed belt restores consistent blade speed and eliminates power loss in tall turf.
Designed with high-tensile aramid cords and a natural rubber core, this covered belt resists heat, stretching, and surface abrasion from idler pulleys. The manufacturer provides one year of product support against manufacturing defects. This belt is ideal for owners of 917-series tractors, DLT3000, and DYT4000 models seeking durable power transfer. However, it gives way to replacement spindle assemblies if deck issues stem from noisy, seized bearings rather than belt slippage.
- Replaces OEM numbers Craftsman 144959, 532144959, and Husqvarna 532144959.
- Constructed with aramid tensile cords and a natural rubber body.
- Wrapped with a two-layer fabric cover for heat resistance and minimal wear.
- Measures 0.50 inches wide by 95.40 inches long for 42-inch decks.
Spindles Fit for Craftsman 42 inch
Spindles Fit for Craftsman 42 inch
9.2/10 Our score
- Package Dimensions
- 13.39 x 7.09 x 6.77 inches
- Item Weight
- 6.56 pounds
- ASIN
- B09C5J29DF
Best for: Eliminating blade wobble and mandrel noise
Pros
- Includes two complete spindles
- Pre-threaded mounting holes
- Complete installation hardware included
Cons
- Lacks external grease fittings
The Spindles Fit for Craftsman 42 inch two-pack resolves severe rotational issues caused by worn or damaged mandrel bearings. Mower spindles absorb harsh impacts from rocks and roots, eventually developing internal play that leads to uneven cutting and harsh deck vibration. Installing a fresh craftsman 130794 spindle assembly eliminates mandrel runout, protects blade retaining threads, and restores balanced rotation. This two-piece set allows you to rebuild both deck mandrels together, preventing uneven blade speeds.
Each spindle features a 5-point star-shaped blade mount that matches factory cutting blades securely under load. The package includes pre-threaded mounting holes and three threaded bolts per unit, along with a pulley lock nut, blade bolt, washer, and spacer. These assemblies arrive pre-greased for fast installation, though they lack external zerk fittings. This makes them ideal for residential owners of LT1000, LT2000, and YT3000 tractors wanting a complete hardware kit. It gives way to pulley covers when deck issues involve physical shield damage rather than bearing failure.
- Includes two complete spindles replacing OEM part numbers 130794, 137641, and 532130794.
- Equipped with pre-threaded mounting holes and three installation bolts per spindle.
- Features a 5-point star blade mounting design for firm blade alignment.
- Pre-lubricated internally for direct bolt-on installation without extra grease.

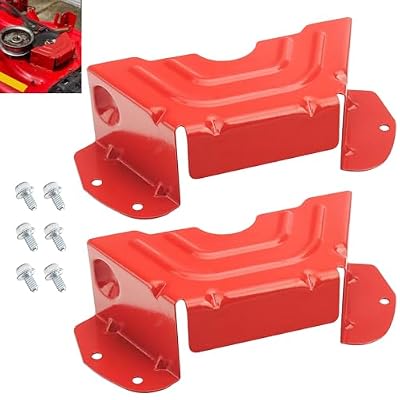

2 Set 783-06424A-0638 Deck Spindle Pulley
Best for: Shielding pulleys against yard debris impacts
Pros
- Covers left and right pulleys
- Fits 42-inch and 46-inch decks
- Sturdy formed steel construction
Cons
- Mounting screws not included
The 2 Set 783-06424A-0638 Deck Spindle Pulley guard set provides vital overhead defense for rotating pulleys on 42-inch and 46-inch decks. Positioned atop the deck shell, spindle pulleys are vulnerable to debris strikes, stray sticks, and packed grass clippings that can unseat belts or damage pulleys. Installing this craftsman deck spindle pulley guard creates an effective barrier that prevents foreign objects from fouling belt channels and protects the operator from spinning drive parts.
Finished in red, this two-piece package covers both the left and right spindle locations using identical guard components. It replaces OEM part numbers 783-06424A-0638 and 783-06424A on MTD-manufactured Craftsman, Troy-Bilt, and Columbia mowers. The listing does not specify included mounting screws, so you should keep your original hardware. This set suits owners whose original covers have rusted, cracked, or bent from impact. If cutting issues involve blade engagement linkage rather than debris protection, the clutch cable is the appropriate replacement.
- Replaces OEM part numbers 783-06424A-0638 and 783-06424A.
- Fits 42-inch and 46-inch decks across Craftsman and MTD-built tractors.
- Symmetrical design fits identically on left and right spindle locations.
- Durable red finish guards against outdoor moisture and direct debris strikes.
CRAFTSMAN 42″ RIDING MOWER DECK ENGAGEMANT
CRAFTSMAN 42″ RIDING MOWER DECK ENGAGEMANT
8.8/10 Our score
- Product Dimensions
- 13 x 8.63 x 0.5 inches
- Item Weight
- 6.7 ounces
- ASIN
- B01H7BHBNI
Best for: Rebuilding slack manual blade clutch linkages
Pros
- Integrated tension spring
- Exact OEM cable dimensions
- Durable protective outer conduit
Cons
- Only for manual engagement systems
The CRAFTSMAN 42″ RIDING MOWER DECK ENGAGEMANT cable restores the mechanical link between the operator dash lever and the deck idler bracket. Over seasons of regular use, clutch cables stretch, inner wire strands fray, and outer casings crack from thermal cycling. When this happens, engaging the dash lever produces excessive slack, failing to tighten the idler pulley fully against the belt. Replacing a worn craftsman 175067 engagement cable restores positive blade engagement and prevents belt slippage.
This clutch cable features an overall length of 45 5/8 inches with a 32-inch protective outer conduit. It is designed with an eyelet on one end for attachment to the dashboard control and an adjustable tension spring on the other end to connect to the deck idler arm. The spring maintains constant belt tension while absorbing sudden load shocks. This part replaces OEM numbers 175067, 169676, 532169676, and 215471. It suits owners of manual clutch 42-inch tractors, but gives way to deck lift links when the problem is uneven cutting height rather than blade drive engagement.
- Replaces OEM clutch cable part numbers 175067, 169676, 532169676, and 215471.
- Features a 45 5/8-inch overall cable length with a 32-inch conduit.
- Equipped with an eyelet on one end and an adjustable tension spring on the opposite end.
- Designed for direct mechanical fitment on 42-inch manual engagement decks.
532195270 Front Deck Lift Link
Best for: Leveling tilted or sagging mower decks
Pros
- High-strength carbon steel
- Galvanized anti-rust coating
- Direct bolt-on replacement
Cons
- Only fits 2006 and newer models
The 532195270 Front Deck Lift Link provides the critical forward suspension connection between the mower deck and the tractor chassis. A bent or worn lift link causes immediate deck tilt, uneven cutting, and stuck height adjustment levers. In extreme conditions, a damaged craftsman 532195270 deck lift link binds the lift mechanism, preventing the operator from lifting the deck over driveway curbs or yard obstacles. Whether towing garden attachments with a cub cadet lawn mower trailer hitch or trimming uneven turf, maintaining accurate deck suspension is essential for consistent cutting height.
Built from high-strength carbon steel with a single bend, this link is finished in a galvanized anti-rust coating to resist moisture, dirt, and corrosion. The link matches original factory dimensions for hole spacing and angle, allowing direct bolt-on installation using existing mower hardware without drilling. Designed for 2006 and newer 42-inch and 46-inch models, it is the best solution for restoring deck height adjustment. However, if the deck structure is level but the side discharge shield is damaged, you will need a replacement chute assembly.
- Replaces front lift link part numbers 532195270, 195270, 581506903, and 532195264.
- Engineered for 42-inch and 46-inch decks on 2006 and newer tractors.
- Constructed from carbon steel with a durable galvanized anti-rust coating.
- Direct bolt-on design installs in minutes using existing factory hardware.
Replacement Part for Craftsman 130968 Husqvarna
Replacement Part for Craftsman 130968 Husqvarna
9.6/10 Our scoreTop scored: 9.4/10 or higher
- Dimensions
- 1 x 1 x 1 inches
Best for: Restoring discharge safety on 42-inch decks
Pros
- Complete kit with pivot hardware
- Includes spring rod and push nut
- Broad multi-brand compatibility
Cons
- Plastic shield susceptible to heavy impacts
The Replacement Part for Craftsman 130968 Husqvarna deflector kit restores necessary safety and grass management functions to 42-inch cutting decks. Mowing with a missing or cracked discharge shield is dangerous because spinning blades can launch rocks, sticks, and heavy debris at high speed. A compromised chute also disrupts airflow, causing clippings to bunch up at the deck exit instead of dispersing evenly across the lawn. Installing a fresh deflector restores proper downward trajectory for clippings while protecting nearby bystanders and property.
This package includes the complete pivot hardware kit: a 532130968 deflector shield, a 532123713 torsion spring, a 532131491 hinge rod, and a 532110452 push nut. Having all matching hardware in one box avoids the hassle of reusing rusted pins or damaged springs. Compatible with 42-inch decks across Craftsman, Husqvarna, Poulan, and Sears models, it replaces part numbers 130968, 139450, and 171859. This kit is ideal for completing a full safety restoration, serving as the final external piece of a comprehensive deck overhaul.
- Replaces OEM deflector part numbers 130968, 139450, 171859, and 532130968.
- Includes deflector shield, torsion spring, hinge rod, and push nut.
- Fits standard 42-inch cutting deck shells across multiple related brands.
- Restores downward deflection for thrown debris to enhance mowing safety.
What Sets These Models Apart
A successful deck rebuild requires understanding how these replacement components work together across the cutting system. This craftsman mower deck comparison summarizes the primary role, compatible deck sizes, materials, and included hardware for each component analyzed.
| Model | Primary Function | Deck Size Fitment | Construction Material | Included Hardware |
|---|---|---|---|---|
| UDC Parts 144959 Deck Belt Replacement | Drive Power Transmission | 42 Inch | Natural Rubber with Aramid Cord | Belt Only |
| Spindles Fit for Craftsman 42 inch | Blade Rotation and Mandrel Support | 36, 38, and 42 Inch | Cast Aluminum Housing and Steel Shaft | Bolts, Nuts, Washers, and Spacers |
| 2 Set 783-06424A-0638 Deck Spindle Pulley | Debris and Pulley Impact Shielding | 42 and 46 Inch | Formed Sheet Steel | Guards Only |
| CRAFTSMAN 42″ RIDING MOWER DECK ENGAGEMANT | Clutch and Idler Arm Tensioning | 42 Inch | Braided Steel Cable with Conduit | Cable with Spring and Eyelet |
| 532195270 Front Deck Lift Link | Front Chassis Suspension Leveling | 42 and 46 Inch | Galvanized High-Strength Carbon Steel | Link Only |
| Replacement Part for Craftsman 130968 Husqvarna | Clipping Deflection and Safety Shielding | 42 Inch | High-Impact Molded Polymer | Torsion Spring, Rod, and Push Nut |
Buying Tips for Craftsman Riding Mower Decks
Before purchasing craftsman 42 inch mower deck parts, locate the model sticker under your tractor seat. Craftsman riding tractors were built by different manufacturers over time, primarily American Yard Products (AYP) with 917 prefixes and MTD with 247 prefixes. Checking your specific model number ensures you match the correct spindle bolt patterns, belt lengths, and link configurations.
During a cutting deck rebuild, always inspect mating parts before installing new components. If you are replacing a drive belt, check the idler pulleys for bearing play, rough rotation, or surface rust that could shred new cords. If you are installing new spindles, verify that the deck shell around the mounting holes is flat and uncracked. Operators comparing older lawn tractors to battery models like the ego lawn tractor will find that maintaining clean belt alignment and level deck pitch remains essential for gas-powered tractor performance.
Fastener security is vital on cutting decks due to constant operational vibration. When installing parts like the Fourtry spindle set, use the provided threaded bolts and tighten them evenly to prevent casting distortion. Never substitute low-grade hardware for structural deck linkages or blade bolts, as failure under load can cause significant deck damage. Adding light lubrication to pivot links and cable springs will maintain smooth mechanical action and resist rust.
FAQ
How do I know when my Craftsman mower deck spindles need replacement?
Failing spindles typically produce loud grinding or screeching noises when blades engage, along with heavy vibration through the footrests. You can confirm worn bearings by disconnecting the spark plug, reaching beneath the deck, and checking for vertical play or rough rotation in the blade tips.
What is the proper procedure for leveling a Craftsman riding mower deck?
Park the mower on flat concrete, verify tire pressures, and position the deck at mid-height. Rotate the blades parallel to the tractor body. Adjust the front deck lift link until the front blade tip sits 1/8 to 1/2 inch lower than the rear blade tip for optimal cutting airflow.
Why does my new deck drive belt keep slipping off the pulleys?
Belts usually derail due to incorrect routing, weak tension springs, or worn idler pulleys. Ensure the belt runs inside all belt guides according to the deck decal. If the engagement cable has stretched or the idler bracket binds, insufficient belt tension will allow derailment.
Do replacement Craftsman mower spindles require regular greasing?
Pre-greased replacement spindles that lack external grease fittings are sealed assemblies. These units are lubricated for their operational lifespan and do not require seasonal greasing. Drilling grease ports can introduce metal shavings into the bearings and is not recommended.
How often should I replace the deck engagement cable?
Engagement cables should be replaced whenever you notice frayed wire strands, cracked outer conduits, or excessive lever slack that prevents full idler arm tension. Regular annual inspection ensures you catch cable stretching before blades slip under heavy cutting loads.
